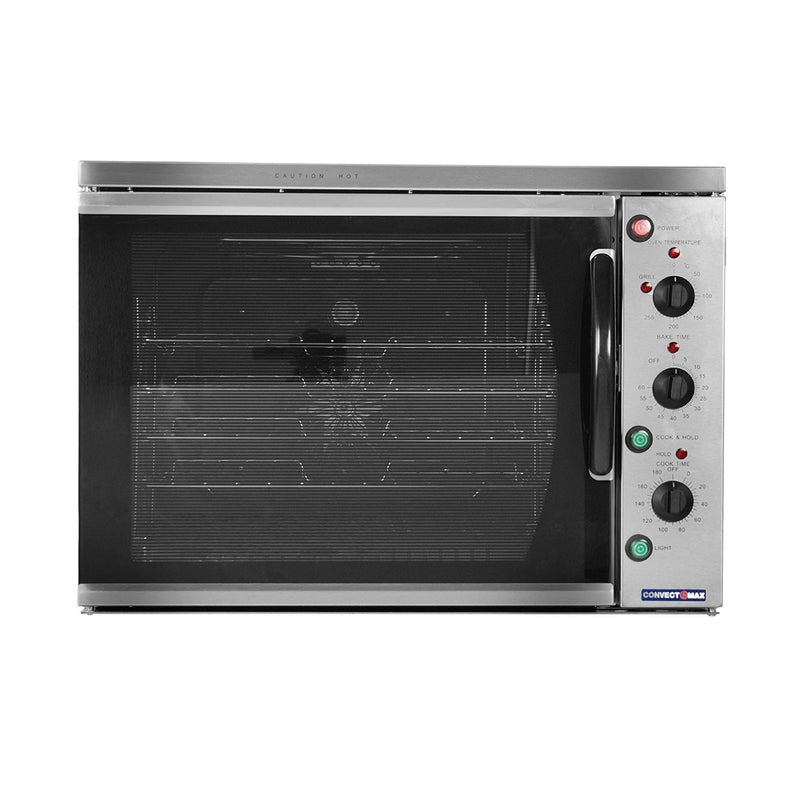

ConvectMax YXD-6A Convection Oven – 4 Tray GN 1/1 Commercial Oven with Grill, 10A
- 4 trays GN 1/1, grill
- 798W × 650D × 596H mm
- Up to 270°C
- 240V 10A
- In stock – usually delivered in 3–4 business daysKerbside delivery to commercial premises Australia-wide; regional areas can take a little longer. Residential delivery available at extra cost, or collect from a freight depot near you. Freight calculated at checkout.
- 1-year parts & labour warrantyManufacturer-backed. Full terms in the specs below.
- Price match & easy returns Found it cheaper? We'll beat it. Changed your mind? Easy returns.
-
Secure checkout
- Direct deposit
-
Need help choosing or buying in bulk? Talk to Daniel
I'm the owner and happy to help. Call 1300 595 140 or email sales@supplymykitchen.com.au · About me
Getting it into your kitchen
We deliver kerbside, so here’s what this one needs once it arrives.
- From the kerb: allow two or three people and a trolley. About 64kg in its packaging.
- Through the door: doorways at least 700mm wide. The narrowest side is 650mm unboxed (850mm boxed), plus 50mm for your hands. Measure doors, hallways and corners on the way in.
Ready for delivery day?
You’re ready for delivery day.
Not sure it will fit? Call 1300 595 140 and we’ll check it with you.
Commercial 4 Tray GN 1/1 Convection Oven with Grill

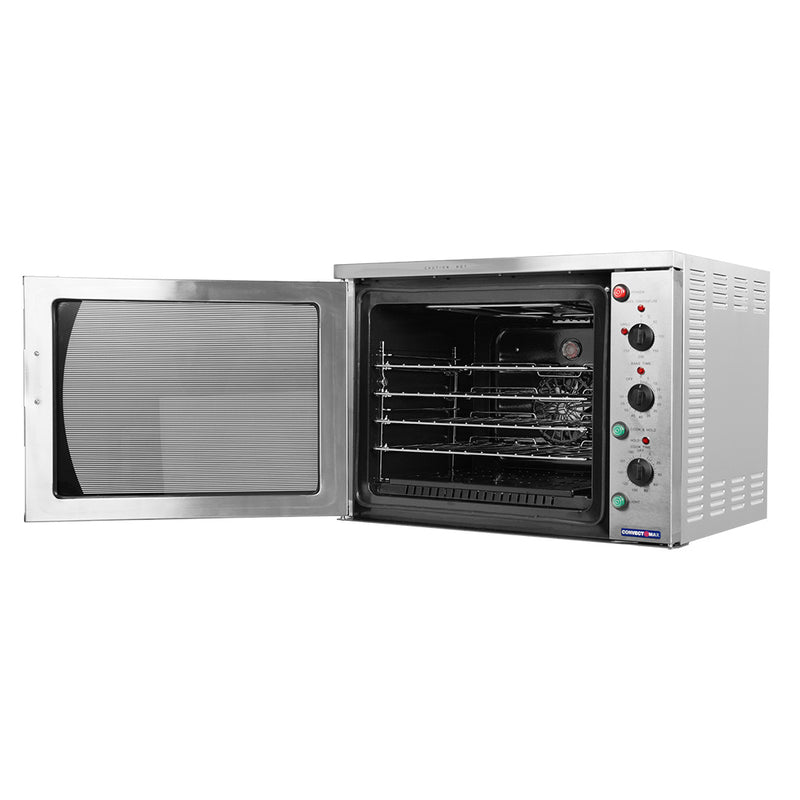

The ConvectMax YXD-6A is a versatile convection oven that takes four GN 1/1 pans and adds a grilling function and cook-and-hold mode. It suits cafés, takeaways and restaurants that bake, roast, grill and keep food warm, all from a standard 10A power point.

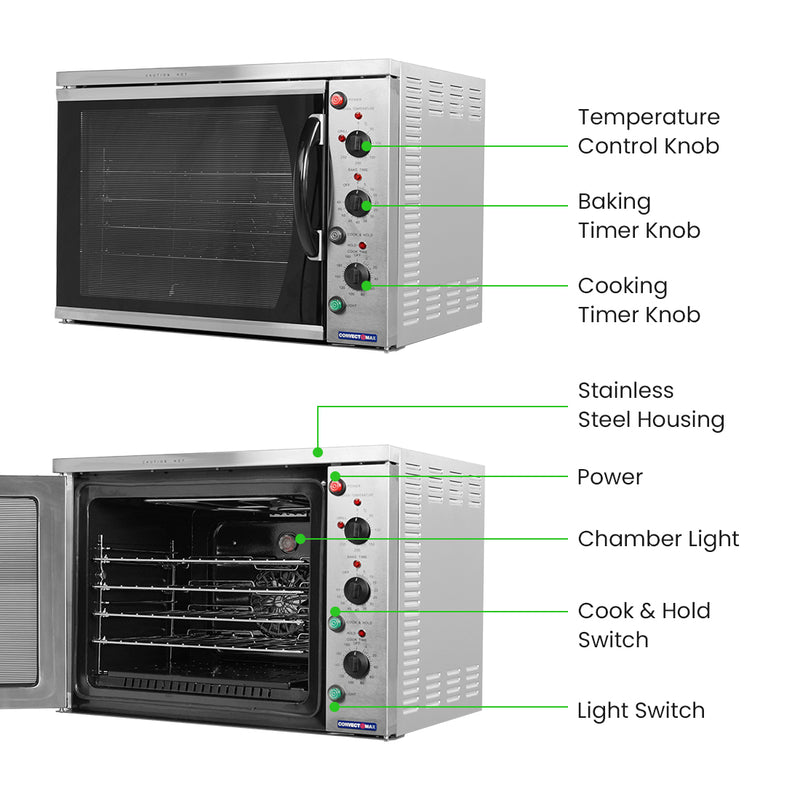

Key Features
- Capacity for 4 × GN 1/1 trays
- Temperature up to 270°C
- Top and bottom heating elements
- Grilling function
- Cook and hold function
- 180-minute cooking timer and 60-minute bake reminder

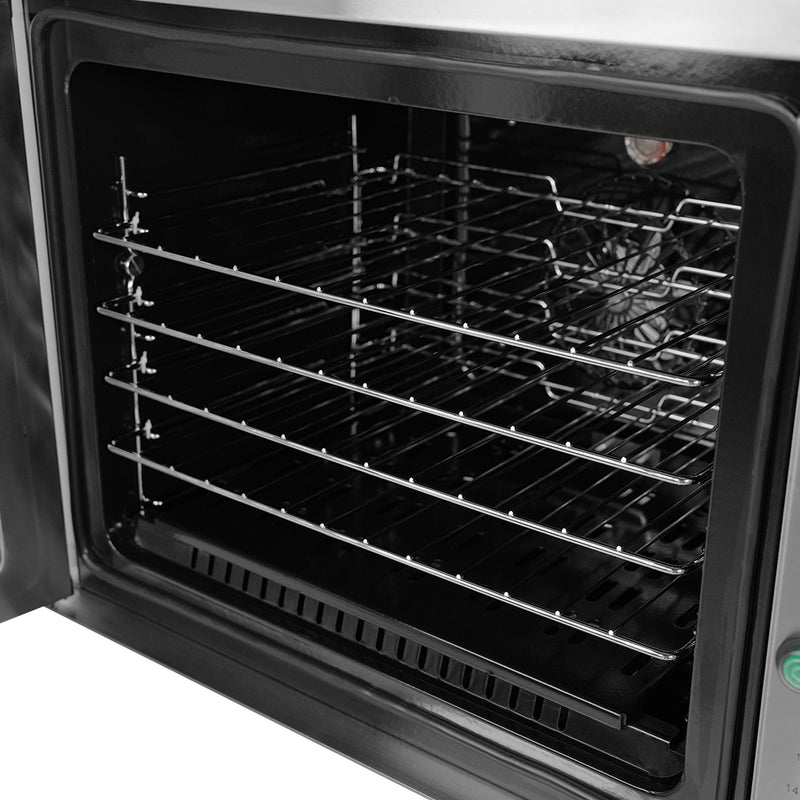

- Ceramic-coated cavity for easy cleaning
- Chamber light
- Fan stops automatically when the door opens
- Waterproof on/off switch
- Plugs into a 240V 10A outlet
Performance
Fan-forced convection combined with top and bottom elements gives you baking, roasting and grilling in one oven, at temperatures up to 270°C. Cook-and-hold keeps food at serving temperature once it's done, and the 180-minute timer handles slow roasts.
Construction

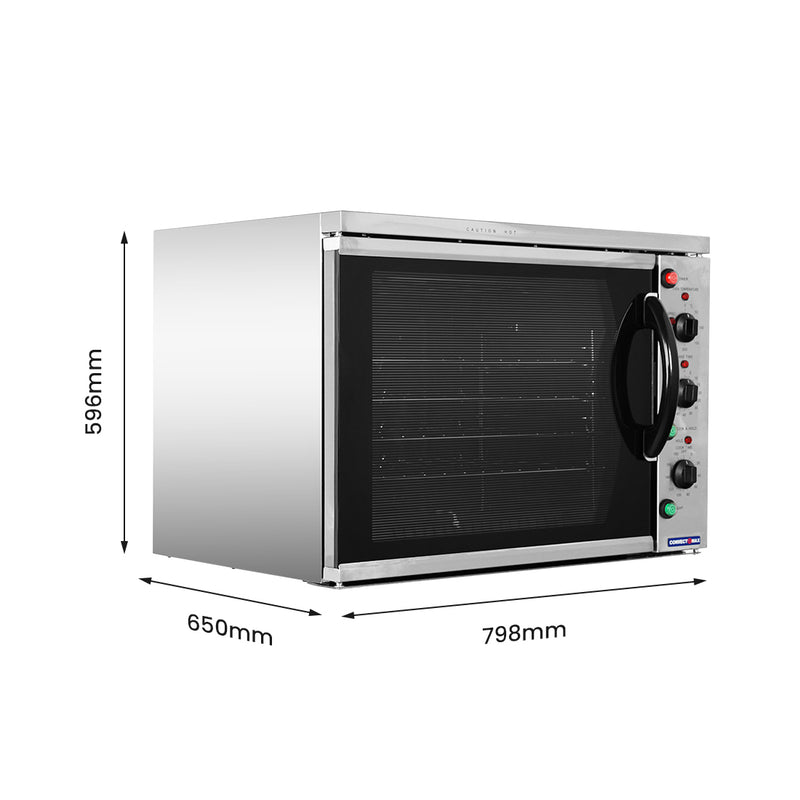

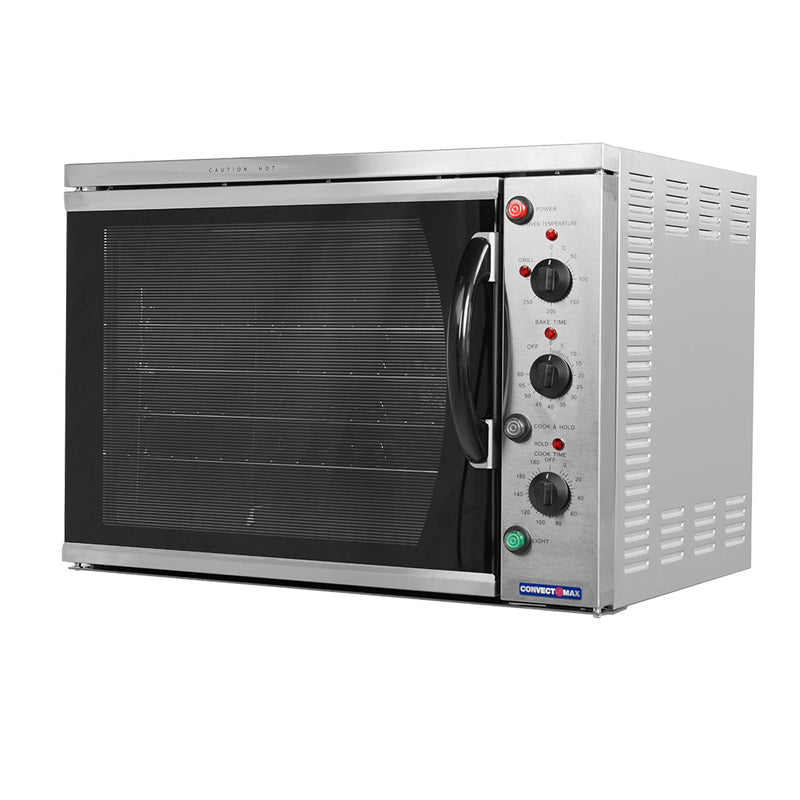

A stainless steel body with a ceramic-coated cavity is built for daily use and wipes clean easily. The oven measures 798mm wide, 650mm deep and 596mm high, with an internal chamber of 550 × 418 × 431mm, and weighs 64kg.
Practical Features

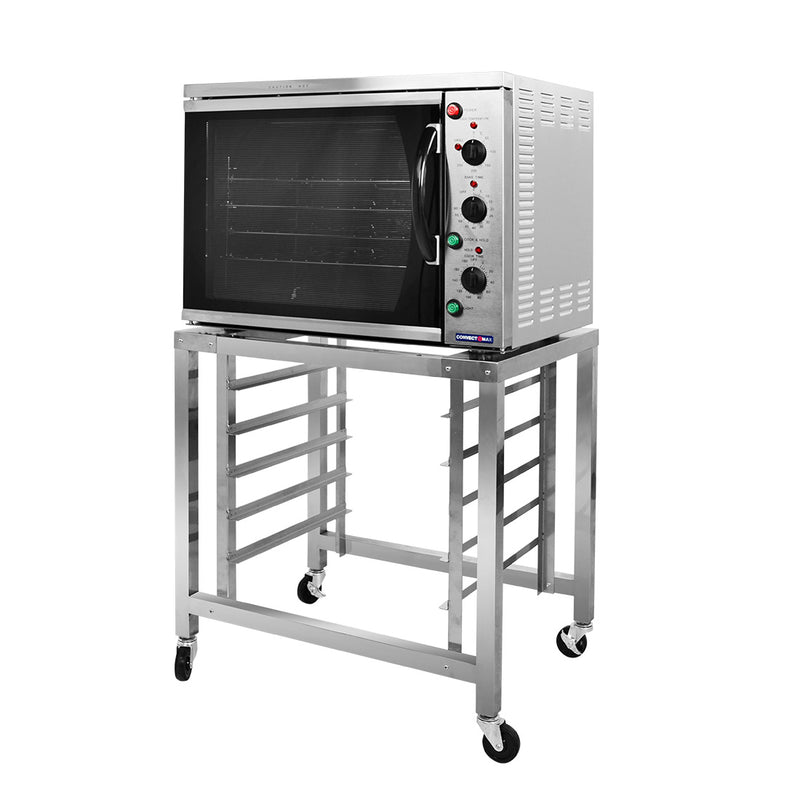

The chamber light lets you check food without opening the door, and the fan stops as soon as the door opens. For a freestanding setup, add the matching ConvectMax YXD-6A-S stand, which has castors and tray runners for extra GN 1/1 storage.
Perfect For
- Cafés and bistros
- Takeaways and pie shops
- Restaurants and catering kitchens
- Kitchens that need baking, roasting and grilling in one oven
Why Choose This Unit?
The YXD-6A gives you convection baking, grilling and cook-and-hold in one GN 1/1 oven that plugs into a standard 10A power point.
Installation

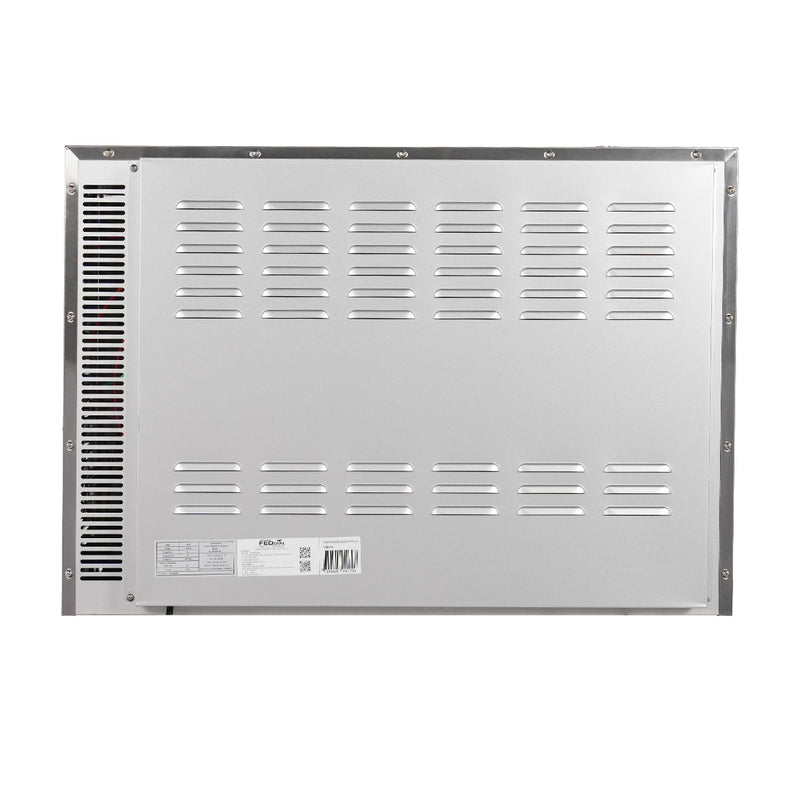

This oven plugs into a standard 240V 10A outlet. Leave space around the oven for ventilation.
Specs
| Capacity | 4 trays, GN 1/1 |
|---|---|
| Maximum Temperature | 270°C |
| Functions | Convection, grill, cook and hold |
| Power | 240V, 2.4kW, 10A |
| Dimensions (W x D x H) | 798 x 650 x 596mm |
| Internal Dimensions (W x D x H) | 550 x 418 x 431mm |
| Net Weight | 64kg |
| Matching Stand | YXD-6A-S |
1 Year Parts and Labour Warranty
